xPlorer Premium

Central Recording and Processing Unit

Home » Products » Distributed System » xPlorer Premium

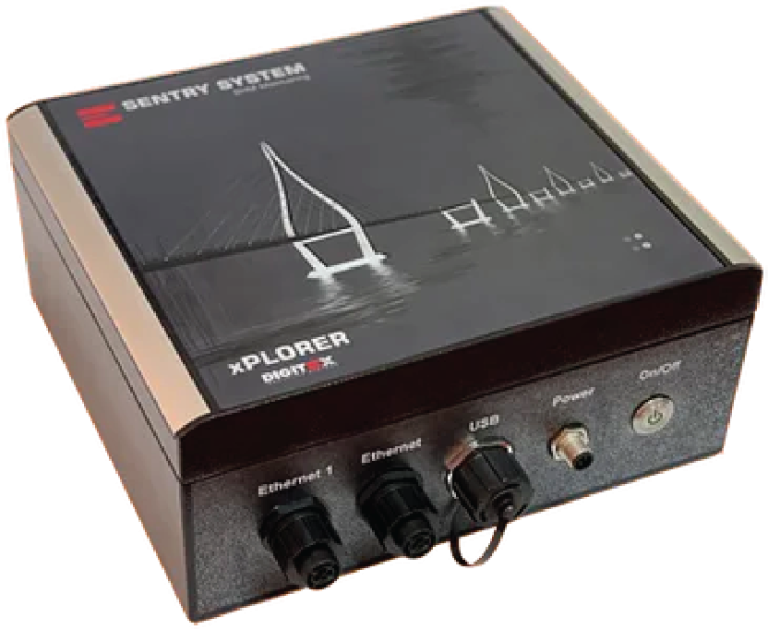

xPlorer product image

xPlorer® is Digitex Systems’ rugged and powerful central data acquisition unit for permanent installation in Structural Health Monitoring (SHM) projects. It’s a compact device integrating both hardware and software, combining industrial-grade reliability with the full functionality of the Voyager® software suite for data collection, storage, synchronization, processing, alarming, and reporting.

With its robust aluminum IP67 enclosure, integrated UPS battery, and advanced time synchronization modules, xPlorer ensures uninterrupted operation and precise alignment of data across large monitoring networks. Whether deployed on bridges, dams, tunnels, pipelines, or high-rise buildings, xPlorer is the backbone of SHM installations, enabling real-time decision-making and long-term performance insights.

xPlorer Premium acts as the central hub for all Sentry System devices (xWave, xSense, xStrain, etc.), supporting both local and remote configurations. Furthermore, it can acquire and manage data from hundreds of channels simultaneously, with continuous Ring Buffer recording that ensures no event is missed. On top of that, the xPlorer Premium stores data locally for up to 60 days and exports in proprietary compressed formats, MiniSEED, or ASCII for interoperability.

Communication

With dual Ethernet ports, DigiMESH® connectivity, and USB service access, the xPlorer Premium provides flexible integration options. One Ethernet port supports the sensor network, along with a second one that offers optional LAN/Internet connectivity. Consequently, users may publish their xPlorer securely online through Digitex’s tunnelling service with predefined domains. Also, it supports remote management with over‑the‑air firmware updates, secure reboot, and configuration.

Synchronization

Additionally, xPlorer Premium includes a GPS module and Digitex’s proprietary DigiSync® protocol. In this way, it ensures sub‑millisecond accuracy in time and data synchronization across all connected devices – critical for advanced modal and vibration analysis. Finally, even in GPS‑denied environments, DigiSync maintains reliable synchronization, aligning every sensor with the central station clock.

Acess & Security

Moreover, users can access data directly through a web browser, preview and analyze recordings, generate automated PDF reports, or stream live data to client applications. Optional alarming features include SMS and email notifications, relay outputs, and integration with thirdparty safety systems. On top of that, the integrated UPS battery provides more than 20 hours of autonomy, ensuring continuous operation during power outages.

Technical Specifications

GeneralCentral recording & processing unit (central station) for permanent SHM installations; integrates rugged hardware with full Voyager® software suite for real-time acquisition, storage, synchronization, alarming, and reporting.
Supported unitsAll members of xDAS Sentry system family
EnvironmentalOperating: −20°C to +40°C, 0-90% RH non-condensing
Interfaces
  • Connectivity: Dual Ethernet (10/100 Base-T) — one static-IP sensor network port, one DHCP for external access.
  • LEDs: AC power, sync state, and battery level indicators.
  • USB: Service port for maintenance and configuration.
  • Power: Illuminated On/Off button for activation and status.
  • GPS: SMA connector for external GPS antenna.
  • AC input: Rugged metal connector, IP67, with screw-lock coupling.
PhysicalRugged coated aluminum housing, IP65; Weight: 7 kg; Dimensions: 250 × 380 × 120 mm (9.84 × 14.96 × 4.72 in)
PowerInput: 110/220 VAC; Backup: 12 V external battery; Low Power Consumption (~15 W); Integrated UPS (20 h autonomy)
Data HandlingRing buffer (up to 60 days); Triggered, scheduled, and manual recording; Compression: DigiWLC® & MiniSEED
SynchronizationGPS-disciplined timing and DigiSync® network synchronization for distributed arrays
User InterfaceInformational LEDs; Web app panel
SoftwarePre-installed with Voyager® for acquisition, management, triggering, analysis & reporting
IntegrationWorks with Nexus® SeedLink client, Vista® data viewer, and Observer® OMA suite
CertificationCE, RoHS, ISO9001, ISO14001


Key Features of xPlorer Premium

  • Permanent Installation: Industrial‑grade device designed for permanent SHM deployments in harsh environments.
  • Voyager® Software Integration: Comes pre‑installed with Voyager, providing full data acquisition, including management, triggering, analysis, and reporting.
  • Robust Enclosure: Rugged aluminum housing with IP67 protection against dust, humidity, and extreme weather conditions.
  • Advanced Time Synchronization: GPS module with 1PPS accuracy ±15ns and DigiSync® protocol for sub‑millisecond alignment of all sensors.
  • Ring Buffer Storage: Local SSD storage with up to 60 days of continuous recording for the purpose of ensuring no data loss.
  • MultiFormat Support: Data stored and exported in proprietary Digitex format, MiniSEED, and ASCII for maximum interoperability.
  • Flexible Connectivity: Dual Ethernet ports, DigiMESH®, USB service port, FTP/SeedLink publishing options.
  • Alarming & Notifications: Optional relay outputs, SMS/email notifications, as well as integration with external alarm systems.
  • Power Autonomy: Integrated UPS battery with more than 20 hours autonomy; operates on 110/220VAC input.
  • Remote Management: OTA firmware updates, device reboot, configuration management, including a logging option via secure interface.
  • UserFriendly Access: Data accessible from any standard web browser with automated report generation (PDF, FFT, PSD, statistics).
  • LED Indicators: Status LEDs for Power, Battery, and Sync for quick field diagnostics.
  • Low Power Consumption: Efficient design with low power consumption, suitable for remote sites.

xPlorer is the backbone of Digitex SHM deployments, enabling centralized data acquisition, synchronization, and real‑time analysis. Its rugged design and advanced functionality make it suitable for:

  • Bridges – long‑term vibration and modal monitoring
  • Dams and hydropower plants – seismic and structural event detection
  • High‑rise buildings – response to wind and seismic loading
  • Tunnels and pipelines – centralized acquisition for distributed sensor networks
  • Industrial plants and mines – safety monitoring and vibration analysis

Benefits of Using xPlorer Premium

  • Provides centralized SHM data acquisition with integrated Voyager® software for a complete, ready-to-use solution
  • It also saves time and cost with dual Ethernet and DigiMESH® for flexible connectivity in any environment
  • It additionally increases system reliability with continuous Ring Buffer storage and Store&Forward® capabilities
  • Enhances data integrity with GPS/DigiSync® sub-millisecond synchronization across all connected sensors
  • Improves safety with optional alarming via SMS, email, and relay outputs, integrated directly into structural monitoring workflows
  • Ensures uninterrupted operation with a rugged IP67 enclosure, low power design, including a built-in UPS battery for >20h autonomy
  • Simplifies management with web-based access, automated PDF reporting, and full remote control (OTA updates, reboot, configuration)
  • Guarantees long-term field performance in harsh environmental conditions, from extreme weather to industrial settings

Find out more about this product by downloading:
