External Sensors Digitizer Unit

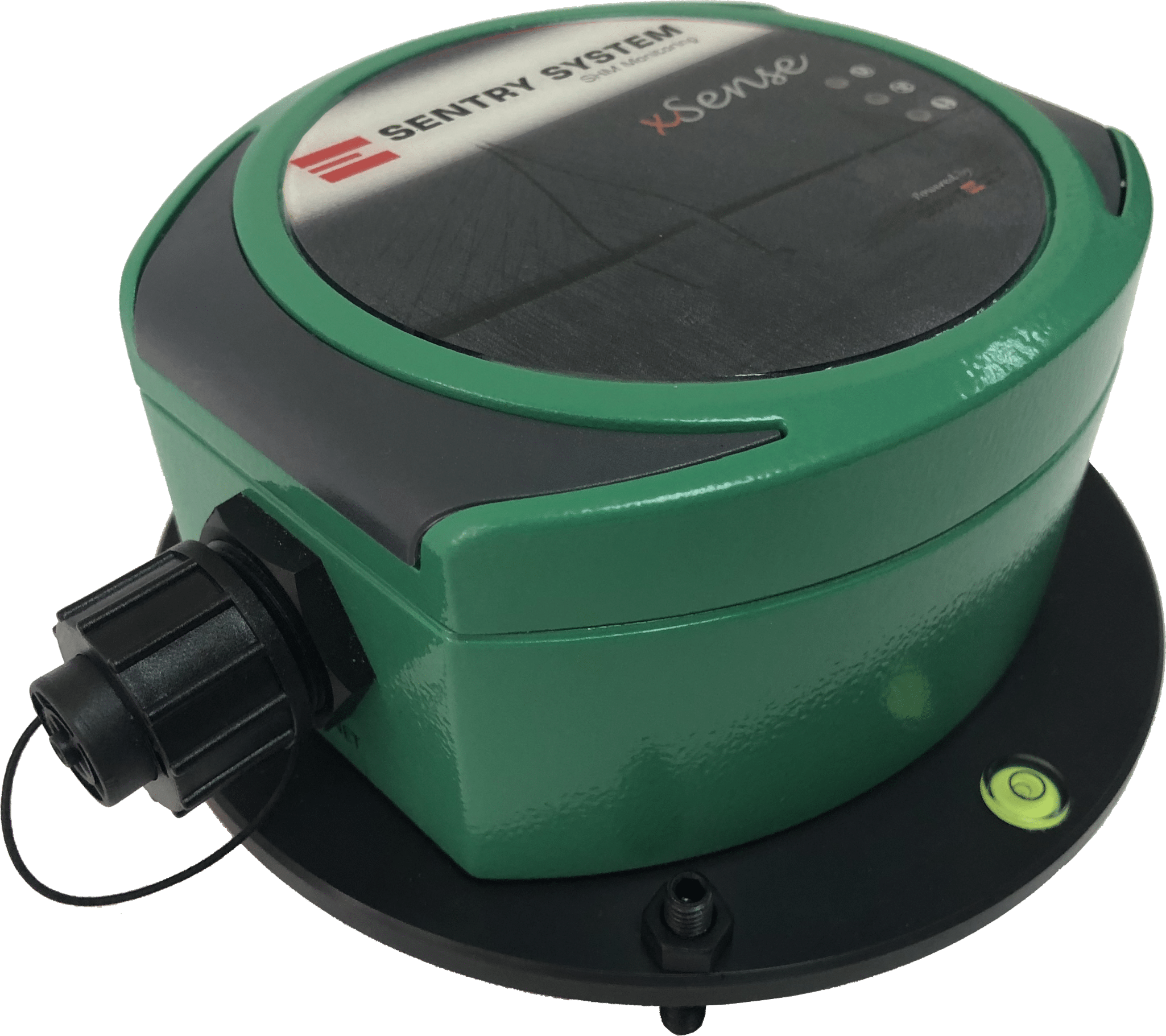

xSense® is a flexible external sensor digitizer unit. We designed it to extend the capabilities of Digitex Systems’ Structural Health Monitoring Sentry System by integrating a wide variety of analog sensors. All in all, the xSense enables civil engineers to capture structural and environmental parameters. More precisely, some of these parameters include displacement, inclination, temperature, humidity, pressure, wind, and much more. This way, the xSense complements our digital accelerometer-based monitoring with broader insights into structural health and condition monitoring.
In essence, the xSense supports voltage, current, and RTD sensor inputs, and can virtually integrate any analog sensor into the fully digital SHM ecosystem. Each external sensor digitizer unit provides high-quality A/D conversion at the sensor site, ensuring low-noise digitization and reliable real-time streaming to the Voyager® central acquisition software. Moreover, the xSense utilizes a rugged IP67 aluminum enclosure, delivering dependable performance in the harshest environments.
We built the xSense on a modular platform that supports different ADC options to accommodate various sensor types. Additionally, the device incorporates 16-bit ADCs with up to 16 channels, 24-bit ADCs with a mix of voltage and current inputs, and RTD-specific ADCs for temperature sensors (PT100/PT1000). In this way, the external sensor digitizer offers the flexibility of a universal interface for connecting third-party sensors into Digitex SHM networks.
Likewise, our sensor digitizer unit provides Ethernet connectivity as standard, with optional Wi‑Fi, DigiMESH®, and GSM/4G communication modules. Advanced Store&Forward® capability ensures no data is lost during connectivity disruptions, while proprietary Digitex compression and MiniSEED compatibility optimize bandwidth and storage. With GPS or DigiSync® time synchronization, xSense aligns seamlessly with other Sentry System devices, guaranteeing accurate and synchronized measurements across distributed networks.
General | 16/24‑bit ADC; Software Filters, Adjustable Sampling Rate: 200 sps (1, 10, 50, 100, 500,1000); Ethernet, Wi-Fi, or GSM Communication; Configurable Channels Options |
---|---|
Environmental | Operating: −40°C to +55°C, 90% RH Non-Condensing |
Physical | Rugged Aluminum Enclosure, IP66/IP67; Weight: 0.7 kg; Dimensions: 130 × 120 × 65 mm |
Power | CAT5e data cable powering; 12‑24 VDC or PoE Voltage Input; 1‑2W (w/o sensor); 1‑2W (w/o sensor) Power Consumption; Sensor Power Supplied from Digitizer |
Acquisition Modules | Voltage ‑ 16 bit: 8/16; 0‑5, 0‑10, ±5, ±10V; Voltage ‑ 24 bit: 4/8; ±10V; Current ‑ 24 bit: 4; 0‑20mA, 4‑20mA; RTD: 4; PT100, Pt1000 |
Synchronization | GPS, DigiSync®, RTC |
User Interface | Informational LEDs; Web App Panel; System Configuration Panel |
Versatile Sensor Inputs: Supports voltage, current, and RTD sensors, making it possible to integrate displacement, inclination, temperature, humidity, wind, pressure, corrosion, and many other analog sensors into SHM projects.
Flexible ADC Options:
16-bit ADC: up to 16 voltage channels (0–5V, 0–10V, ±5V, ±10V)
24-bit ADC: up to 12 channels, including 4 current inputs (0–20mA, 4–20mA)
RTD ADC: up to 4 channels for PT100/PT1000 temperature sensors
Signal Quality: Built-in anti-aliasing filter, software-programmable input ranges (single-ended or differential), in addition to the precision digitization at the source to minimize noise.
Communication Options: Standard Ethernet connectivity with optional Wi-Fi, DigiMESH®, or GSM/4G modules; supports simple CAT5e cabling, as well as fully wireless optional setups.
Advanced Data Handling: Store&Forward® buffers ensure no data loss during network outages; proprietary Digitex compression and MiniSEED support reduce bandwidth and storage requirements.
Configurable Sampling Rates: User-selectable from 1 SPS to 1000 SPS, adaptable for both slow environmental monitoring and high-rate dynamic measurements.
Time Synchronization: GPS or DigiSync® protocol guarantees sub-millisecond accuracy across all distributed Sentry System devices.
Local Storage: Optional SD/eMMC card for standalone MiniSEED storage with triggered events as well as pre/post buffers.
Device Management: Embedded web interface for configuration, live data charts, including firmware updates (OTA), and file downloads.
Rugged Design: Compact IP67 aluminum enclosure, wide operating temperature range (-40°C to +55°C), and optional mounting plate for precise and reliable field installation.
Low Power Operation: Ultra-low power consumption (1–2W), PoE support, and optional battery pack for autonomous use.
Status & Expansion: LED indicators for device status, plus optional accessories (relay outputs, display, GPS, Wi-Fi, GSM, including power protection).
Seamless Integration: The external sensor digitizer operates natively with the xPlorer central unit, Voyager acquisition software, Nexus client, and Vista data viewer as part of the Digitex Sentry System.
