Pulse

Digital Accelerometer Unit

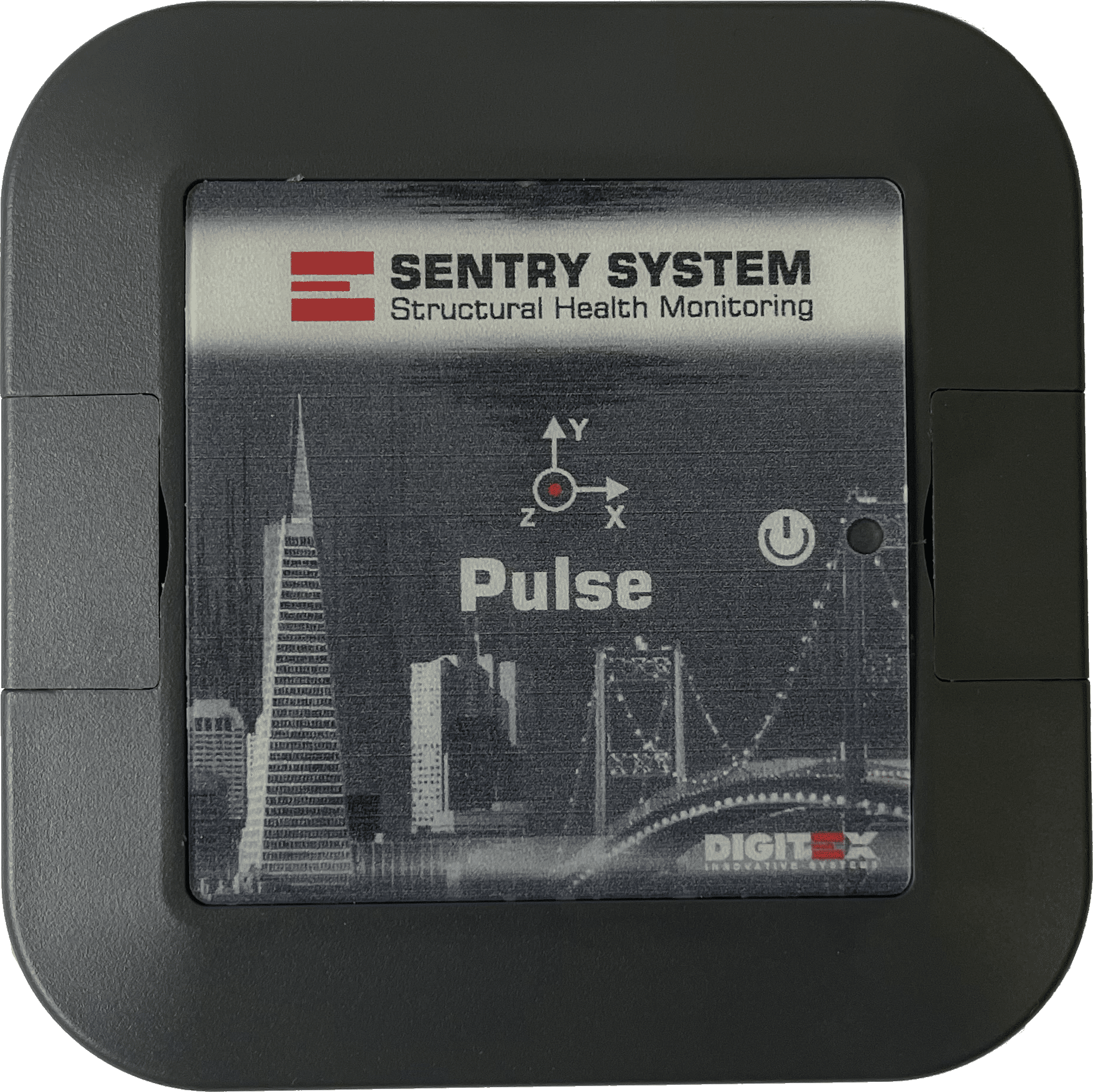

Pulse digital accelerometer product image

The Pulse digital accelerometer unit is a compact, digital accelerometer designed for cost-effective and accessible Structural Health Monitoring (SHM) of small to medium-sized structures. We engineered for permanent installations. In simple words, the Pulse combines reliable performance with simplicity, making it an ideal entry-level solution for real-time vibration and environmental monitoring.

Pulse integrates a tri-axial MEMS accelerometer with a 20-bit ADC, offering accurate measurement of structural vibrations. Its simplicity and flexibility support Ethernet and Wi-Fi communication. Furthermore, the DigiSync® technology ensures precise time-stamping. Additionally, the device is integrated into the xPlorer Home central station or Digitex Cloud for system-level monitoring. Unlike other product families, Pulse’s lightweight IP40-rated enclosure is easy to install in buildings, houses, and small infrastructure projects where budget and simplicity are key factors.

Technical Specifications

General20-bit; Sampling Rate: 200 sps (100, 500,1000); Anti-Aliasing Software Filters; Wi-Fi, Ethernet, GSM Communication; 3 Channels
PhysicalABS enclosure (UL94V-0); IP40/IP67 Protection; Weight: 0.1 kg; Dimensions: 100 × 100 × 25 mm
PowerPowering: USB port, AT/AF POE; Input Voltage: 5 VDC (UPS battery opt); Power Consumption: > 1W; Internal Sensor Power
User InterfaceInformational LEDs; Web app panel
Embedded AccelerometerFull Scale: ±2/4/8g (user selectable); White Noise: 22.5μg/√Hz; Dynamic Range: 87 dB; Scale Factor: 900mV/g; Bandwidth (3dB): Up to 1kHz (selectable)
EnvironmentalOperating Temperature: -40°C to 55°C; 90% non-condensing

Key Features of the Pulse

  • Compact and Lightweight: Less than 100 g with simple two-screw mounting.
  • Integrated Sensing: Built-in tri-axial MEMS accelerometer (20 μg/√Hz).
  • Optional Environmental Sensing: Temperature, humidity, including pressure channels integrated in parallel with acceleration (total of 6 channels).
  • DXTag Support: Connect up to 5 wireless Bluetooth tags, each measuring temperature, humidity, and pressure, enabling up to 15 additional channels.
  • Flexible Communication: Ethernet, Wi-Fi, or optional PoE for seamless connectivity.
  • Real-Time Data Streaming: Continuous transmission of acceleration and environmental data to xPlorer Home or Digitex Cloud.
  • Store&Forward® Technology: Prevents data loss during communication disruptions.
  • DigiSync® Time Synchronization: Ensures accurate alignment of all sensor data in the system.
  • User Configurable Sampling: 1, 50, 100, or 200 samples per second (200 sps default).
  • Web Interface: Easy device setup on top of configuration from any browser.
  • Software Compatibility: Fully supported by Voyager® for acquisition and Observer® for advanced analysis.
  • Rugged Design: IP40 protection suitable for indoor installations in civil engineering environments.
  • LowPower, Permanent Install: Designed for continuous, unattended operation.

Pulse is suitable for:

  • Monitoring of residential and commercial buildings for vibrations and structural response.
  • Low-cost permanent SHM systems where the budget is critical.
  • Condition monitoring of small infrastructure (e.g., pedestrian bridges, retaining walls).
  • Post-event structural assessment after earthquakes or extreme events.
  • Integration of environmental data (temperature, humidity, pressure) with structural vibration monitoring for enhanced analysis

Benefits of Using the Pulse

  • Affordable SHM entry point without compromising reliability.
  • Provides both vibration and environmental monitoring in a single device.
  • Easily expandable through DXTags for multi-point environmental data collection.
  • Minimizes installation effort with compact, lightweight design and easy mounting.
  • Reduces risk of data loss with Store&Forward® and DigiSync® synchronization.
  • Fully integrates with Digitex ecosystem: xPlorer Home, Voyager®, and Observer®.
