xPlorer Home

Central Acquisition Unit

Home » Products » Personal System » xPlorer Home

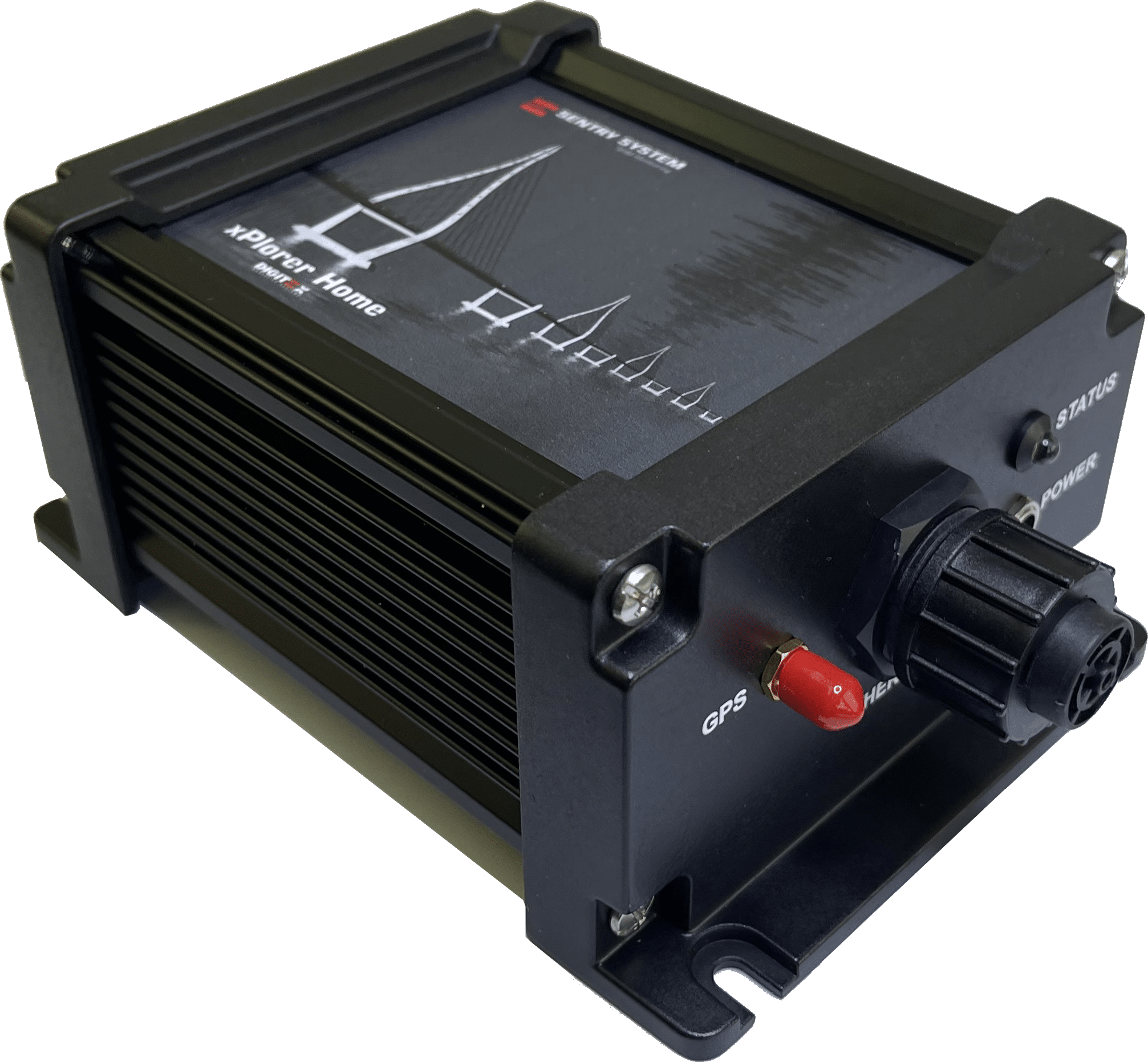

xPlorer Home Central Acquisition Unit product image

xPlorer Home® is the central acquisition unit of the Personal SHM (pSHM) family. It delivers reliable, always‑on monitoring for houses, small buildings, and compact structures. In this way, we designed it as a personal monitoring system, while bringing core Sentry System capabilities to cost‑sensitive projects in a simple and permanent setup.

Digitex Systems designed the xPlorer Home central acquisition unit precisely for permanent installations. That’s why the xPlorer Home manages real‑time acquisition, storage, and basic analysis from up to 20 Pulse accelerometer units.

Additionally, we’ve included the Voyager® core functions for browser‑based configuration, live charts, ring‑buffer recording, event capture with pre-/post time, and automated reporting. Moreover, you can stream to web clients, export for post‑processing, or optionally back up to a remote FTP site. Also, the DigiSync® ensures consistent time alignment across all connected Pulse sensors using the built‑in RTC.

xPlorer Home acts as the central hub for Pulse devices, supporting both local and remote configurations. On top of that, it can acquire and manage data from a large number of channels simultaneously, with continuous Ring Buffer recording that ensures no event is missed. Data can be stored locally for up to 60 days and exported in proprietary compressed formats, MiniSEED, or ASCII for interoperability.

xPlorer Home includes a GPS module and Digitex’s proprietary DigiSync® protocol, ensuring sub‑millisecond accuracy in time and data synchronization across all connected devices – critical for advanced modal and vibration analysis. Even in GPS‑denied environments, DigiSync maintains reliable synchronization, aligning every sensor with the central station clock.

Lastly, users can access data directly through a web browser, preview and analyze recordings, generate automated PDF reports, or stream live data to client applications. Alarming features include email notifications

Technical Specifications

GeneralCentral acquisition and processing unit of the Personal SHM (pSHM) family, designed for permanent installations on houses, small buildings, and compact structures. Combines rugged hardware with the full Voyager® software suite to provide continuous real-time acquisition, storage, synchronization, alarming, and reporting—bringing the core Sentry System capabilities to affordable, cost-effective, always-on monitoring solutions.
Supported unitsUp to 10 Pulse accelerometer units.
EnvironmentalOperating: 0°C to +55°C, 0-90% RH non-condensing
Interfaces
  • Connectivity: Single Ethernet (10/100 Base-T) port in DHCP mode for external access and sensor network array.
  • LED: Single synchronization-state indicator.
  • GPS: SMA connector for external GPS antenna.
  • DC input: Barrel connector supplying regulated 5 V DC from external adapter.
  • Cooling: Two internal fans with opposing airflow and protective guards for efficient heat dissipation.
PhysicalExtruded aluminum enclosure, IP65 rated (indoor use recommended) IP65; Weight: 900gr; Dimensions: 140 × 120 × 70 mm (5.51 x 4.72 × 2.76 in)
PowerInput: 5 VDC input from external power adapter (supplied). Low Power Consumption (5-10 W)
Data HandlingRing buffer (up to 60 days); Triggered, scheduled, and manual recording; Compression: DigiWLC® & MiniSEED
SynchronizationGPS-disciplined timing and DigiSync® network synchronization for distributed arrays
User InterfaceInformational LEDs; Web app panel
SoftwarePre-installed with Voyager® for acquisition, management, triggering, analysis & reporting
IntegrationWorks with Nexus® SeedLink client, Vista® data viewer, and Observer® OMA suite
CertificationCE, RoHS, ISO9001, ISO14001


Key Features of the xPlorer Home:

  • Central Acquisition Unit for up to 20 Sensors: Manages acquisition and control for up to twenty Pulse units.
  • Voyager® Inside (Core Functions): Web configuration, live charts, ring‑buffer storage, including basic reports.
  • Event Triggering: Level‑based, STA/LTA, Above Max, Below Min; configurable pre/post event windows.
  • Reliable Storage: Continuous Ring Buffer (user‑configurable retention, up to ~60 days) to avoid missing events.
  • Data Access & Streaming: Real‑time streaming to web clients; optional secure FTP uploads for backup.
  • Formats & Interoperability: Supports Digitex compression and MiniSEED with embedded SeedLink server.
  • Connectivity: Ethernet for flexible site networking.
  • Time Synchronization: DigiSync® with integrated RTC for consistent timestamps across all nodes.
  • LowPower, Permanent Install: Designed for continuous and unattended operation.

The xPlorer Home central acquisition unit enables centralized data acquisition, synchronization, and real‑time analysis. Generally, it’s suitable for:

  • Residential and low‑rise buildings
  • Small public facilities (schools, clinics, municipal buildings)
  • Light‑industrial structures and equipment rooms
  • Community/campus pilot monitoring programs

Benefits of Using the xPlorer Home

  • Delivers professional SHM capability at an accessible price point
  • Simplifies deployment with integrated browser UI and curated feature set
  • Reduces data‑loss risk with continuous Ring Buffer recording
  • Improves post‑event assessment via automated event capture and reports
  • Scales modestly by adding Pulse sensors as needs evolve
  • Provides an upgrade path to higher‑end Sentry families if the project scope grows
