xNet Ambient

Portable MESH Network Extender

Home » Products » Portable System » xNet – Ambient

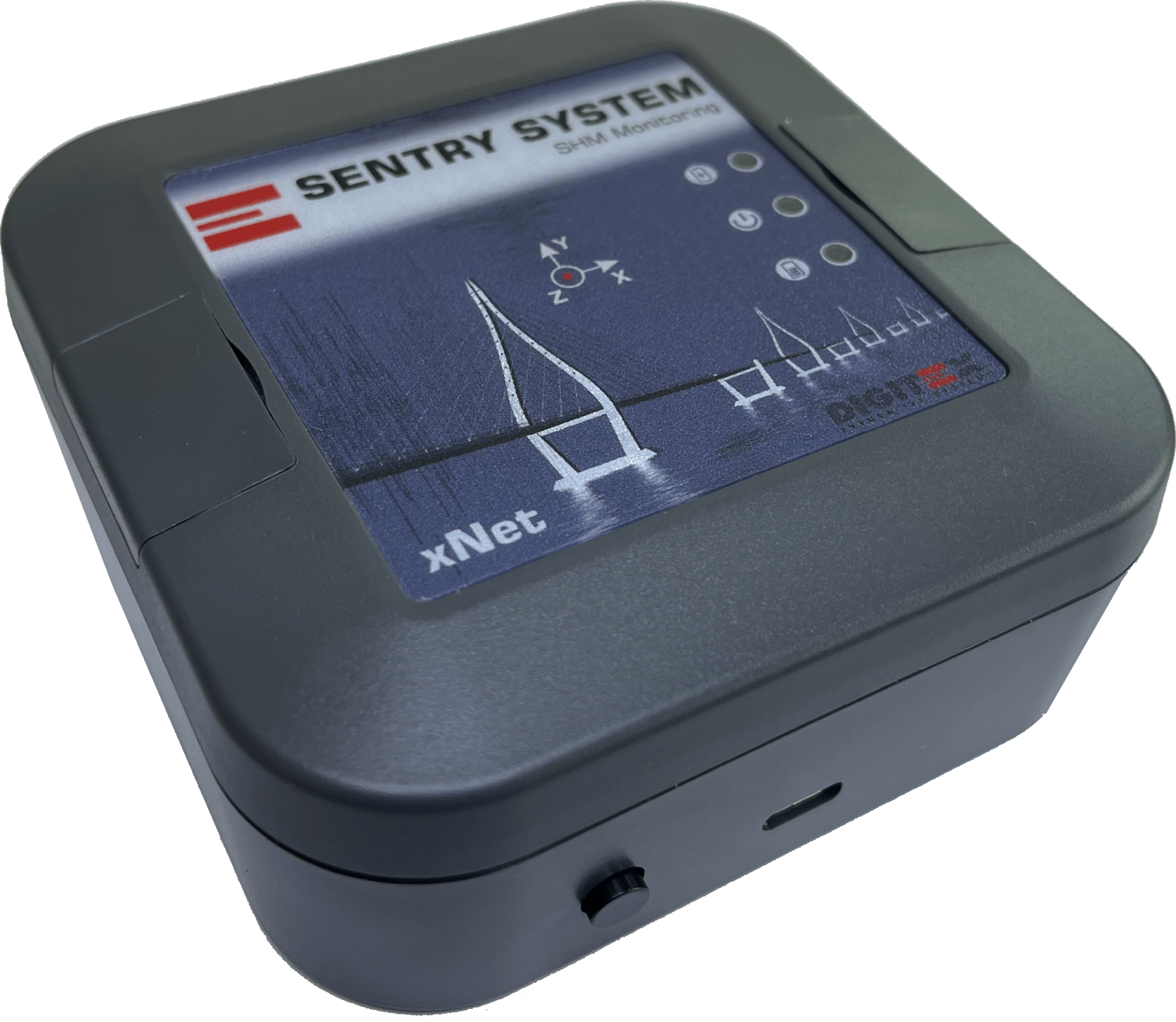

xNet Ambient product image

xNet Ambient® is Digitex Systems’ portable MESH network extender designed to expand the connectivity of xDAS Ambient deployments. Generally, it supports the DigiMESH® protocol, ensuring robust, self‑healing, and highly reliable communication between portable xWave Ambient sensors and xPlorer Ambient acquisition units. Compact, battery‑powered, and easy to configure, the xNet Ambient portable mesh network extender enables the performance of reliable structural health monitoring (SHM) measurements even in large or complex structures where direct sensor connectivity would otherwise be difficult.

xNet Ambient enables seamless network extension in SHM and condition monitoring projects, allowing users to cover wider areas without laying additional cabling. Multiple xNet units can be added to the same MESH, giving engineers flexibility in overcoming physical obstacles, distance limitations, or difficult site conditions. While not mandatory for forming DigiMESH® networks, xNet Ambient units provide stability and redundancy, ensuring that all deployed sensors stay connected to the central xPlorer Ambient. Models with Ethernet support allow hybrid deployments where wired connections extend MESH coverage further, making xNet a versatile bridge between wired and wireless domains.

Technical Specifications

FeaturesWireless Net: 2.4GHz for devices; Protocol: 802.11 b/g/n; Network type: DigiMESH®; Antenna Gain: 2.5dBi
PhysicalABS (UL94V-0) Packaging; Weight: 200g (with Battery); Dimensions: 100x100x40mm
Power5VDC; Internal 18650, 3.7V Battery; Power Consumption: Less than 1.5W; Integrated Charger
User InterfaceInformational LEDs; Web app panel

Key Features of the xNet Ambient

  • Portable & Rugged: Compact ABS/Polymer housing (IP55) for field deployment.
  • MESH Extension: Adds range and reliability to DigiMESH® sensor networks; multiple xNets can be used.
  • Hybrid Networking: Available in wireless‑only or Ethernet + wireless versions for flexible coverage.
  • SelfHealing Protocol: DigiMESH® automatically re‑routes communication if a node goes offline.
  • Battery Operation: Internal rechargeable battery supports >12 hours of continuous operation; 5V USB charging.
  • Easy Configuration: Web interface for setting MESH ID, password, and management parameters.
  • Status Indicators: Informational LED for quick on‑site status check.
  • Compatibility: Fully compatible with xWave Ambient sensors, xPlorer Ambient central units.
  • Low Power Consumption: Low power consumption ensures efficient and extended autonomy.
  • Optional Accessories: 5V DC external power supply; optional higher‑gain antennas for long‑range setups.

xNet Ambient is ideal for extending wireless SHM networks in challenging environments:

  • Large bridges, dams, and high‑rise structures where direct line‑of‑sight is not possible
  • Distributed field deployments requiring wide coverage
  • Temporary measurement campaigns with rapidly changing sensor positions
  • Research projects requiring flexible and reconfigurable SHM networks

Benefits of Using the xNet Ambient

  • Expands wireless coverage to ensure reliable communication across large or complex structures
  • Saves deployment time and cost by avoiding extra cabling in the field
  • Improves reliability of SHM networks with DigiMESH® self‑healing capabilities
  • Enhances flexibility by supporting both wireless and Ethernet‑extended configurations
  • Increases measurement autonomy with >12 hours of battery operation and simple USB recharging
  • Provides seamless integration with xDAS Ambient family and Voyager® central acquisition software
  • Ensures robustness and user‑friendliness with IP55 housing, LED indicators, and easy web configuration
